The Swimming Pool Shop

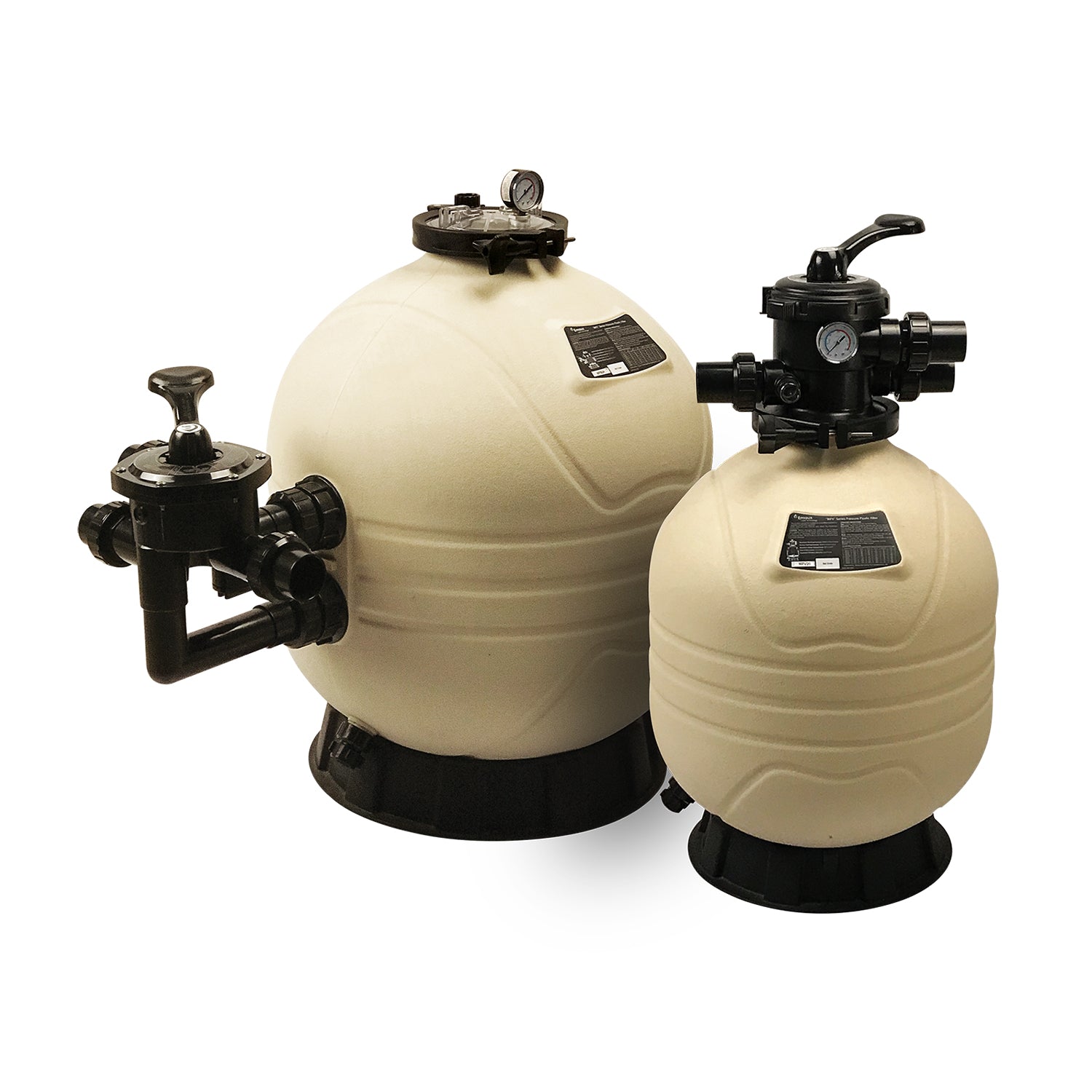

Poolex Ultra Sand Filters

£328.80 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Size Poolex ULTRA TOP - P500 - Ø20" - Valve 1"1/2 / 50mm - Max. flow 10m3/h Poolex ULTRA TOP - P600 - Ø24" - Valve 1"1/2 / 50mm - Max. flow 14m3/h Poolex ULTRA Side - P500 - Ø20" - Valve 1"1/2 / 50mm - Max. flow 10m3/h Poolex ULTRA Side - P600 - Ø24" - Valve 1"1/2 / 50mm - Max. flow 14m3/h Poolex ULTRA Side - P675 - Ø27" - Valve 2" / 63mm - Max. flow 18m3/h Poolex ULTRA Side - P775 - Ø31" - Valve 2" / 63mm - Max. flow 23.5m3/h Poolex ULTRA Side - P875 - Ø35" - Valve 2" / 63mm - Max. flow 30.5m3/h

Quantity

SUPERIOR PERFORMANCE

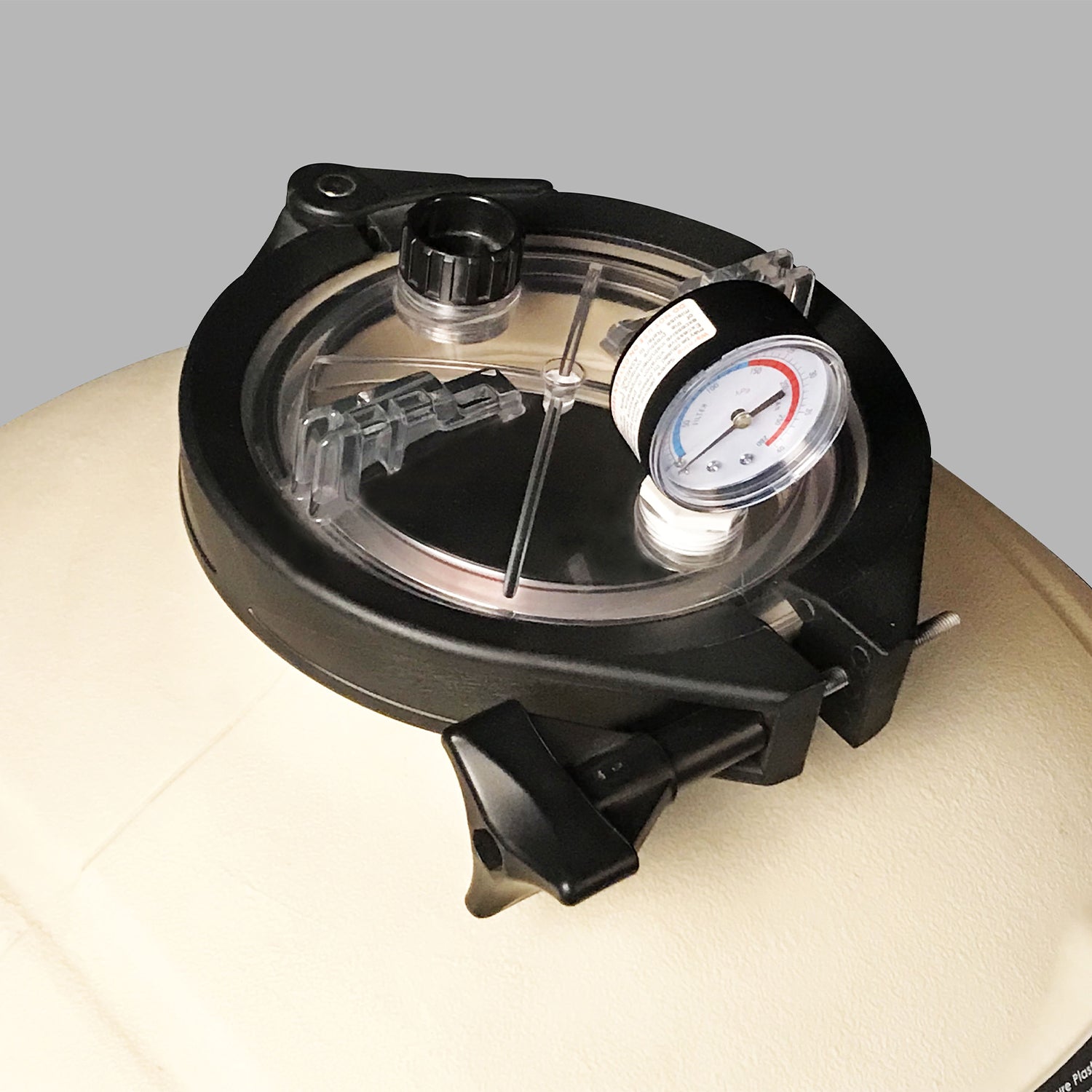

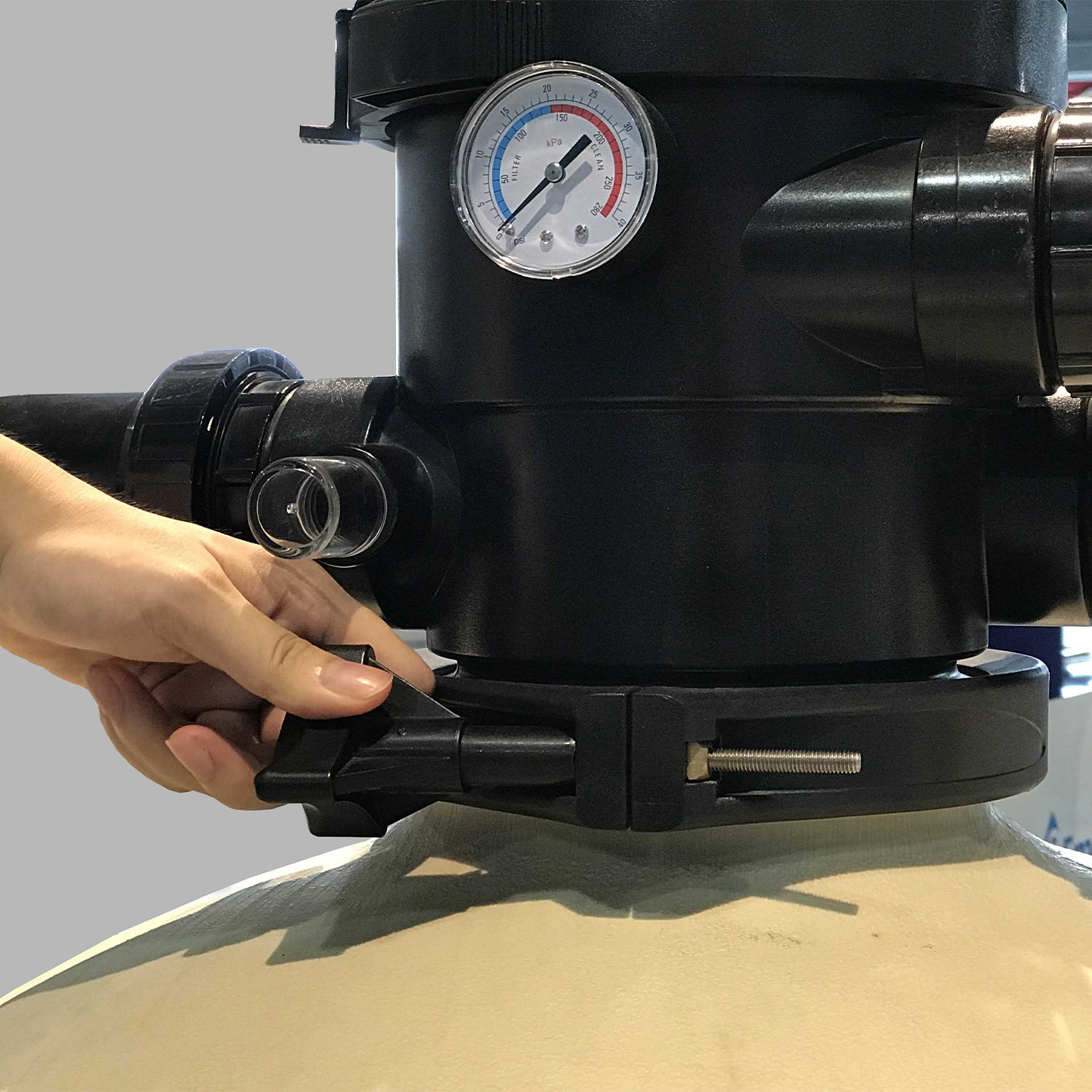

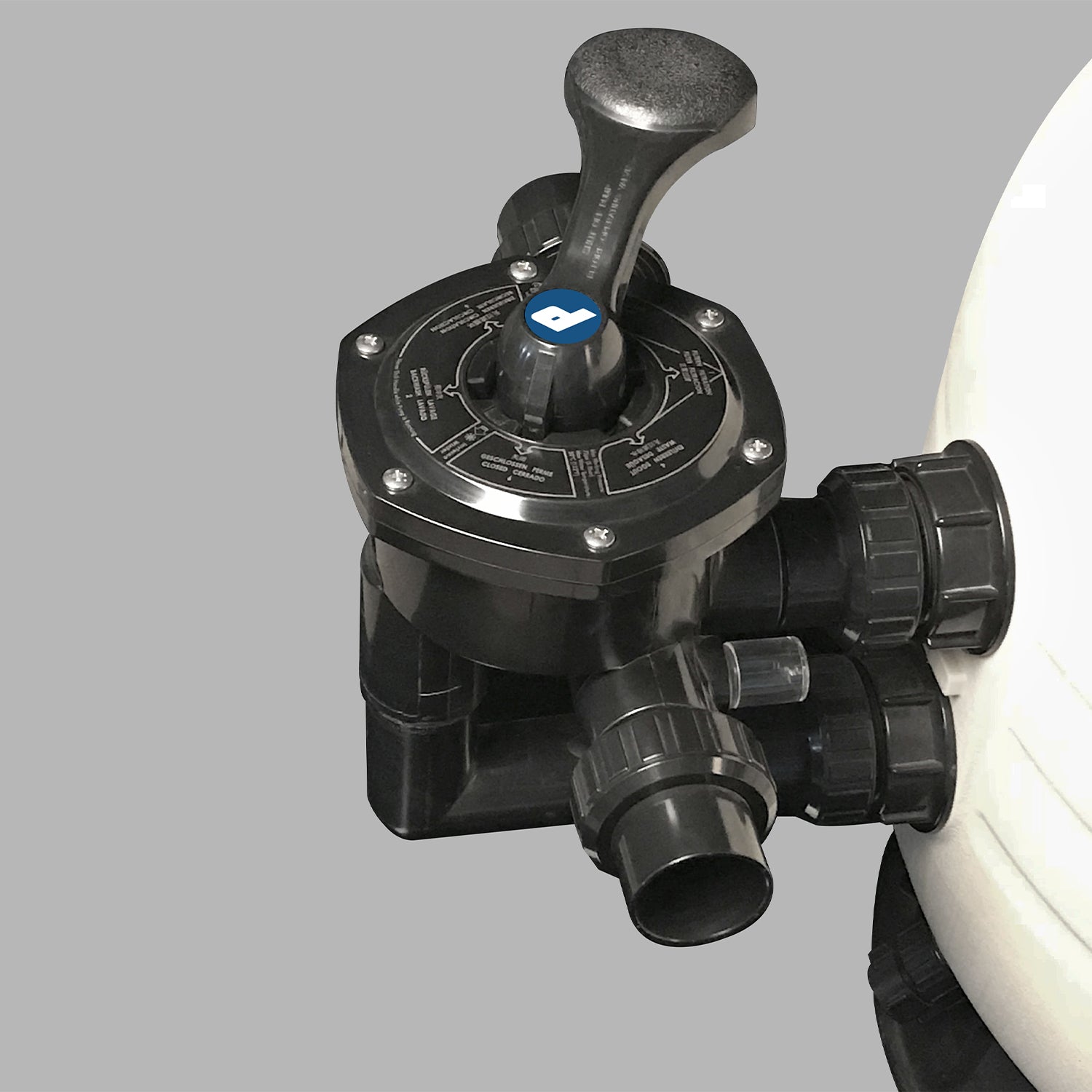

With a maximum operating pressure of 2.8 bar (40 PSI), integrated pressure gauge, reinforced design, and recyclable HDPE tank, Ultra Top and Ultra Side deliver superior performance. They feature a clamp with screw locking for easy installation and tool-free maintenance. They are equipped with a 6-way multiport valve built with robust ABS and stainless steel.

The clamp with screw locking greatly simplifies installation and allows for tool-free maintenance, which is a considerable advantage for users. Additionally, these filters are equipped with a 6-way multiport valve, made of robust Acrylonitrile Butadiene Styrene (ABS) and stainless steel. This construction ensures exceptional durability and optimal functionality, even in demanding environments.

EXCELLENT FILTRATION

Ultra Top & Ultra Side filters embody the pinnacle of filtration technology. With robust construction, these filters withstand high pressures, ensuring exceptional durability even in the most demanding environments. The advanced filtration technology relies on specially designed elements to effectively remove impurities, fine particles, algae, and other contaminants from the water, creating unparalleled purity.

SIMPLIFIED MAINTENANCE

Furthermore, simplified maintenance makes cleaning and element replacement easy, minimizing downtime. These filters are compatible with various filtration pumps, offering easy integration into different existing filtration systems while maximizing energy efficiency to reduce operating costs.

These filters are suitable for a variety of applications, from residential pools to public aquatic complexes, offering exceptional filtration, unparalleled longevity, and ease of maintenance, making them the ultimate choice for those demanding superior water quality.

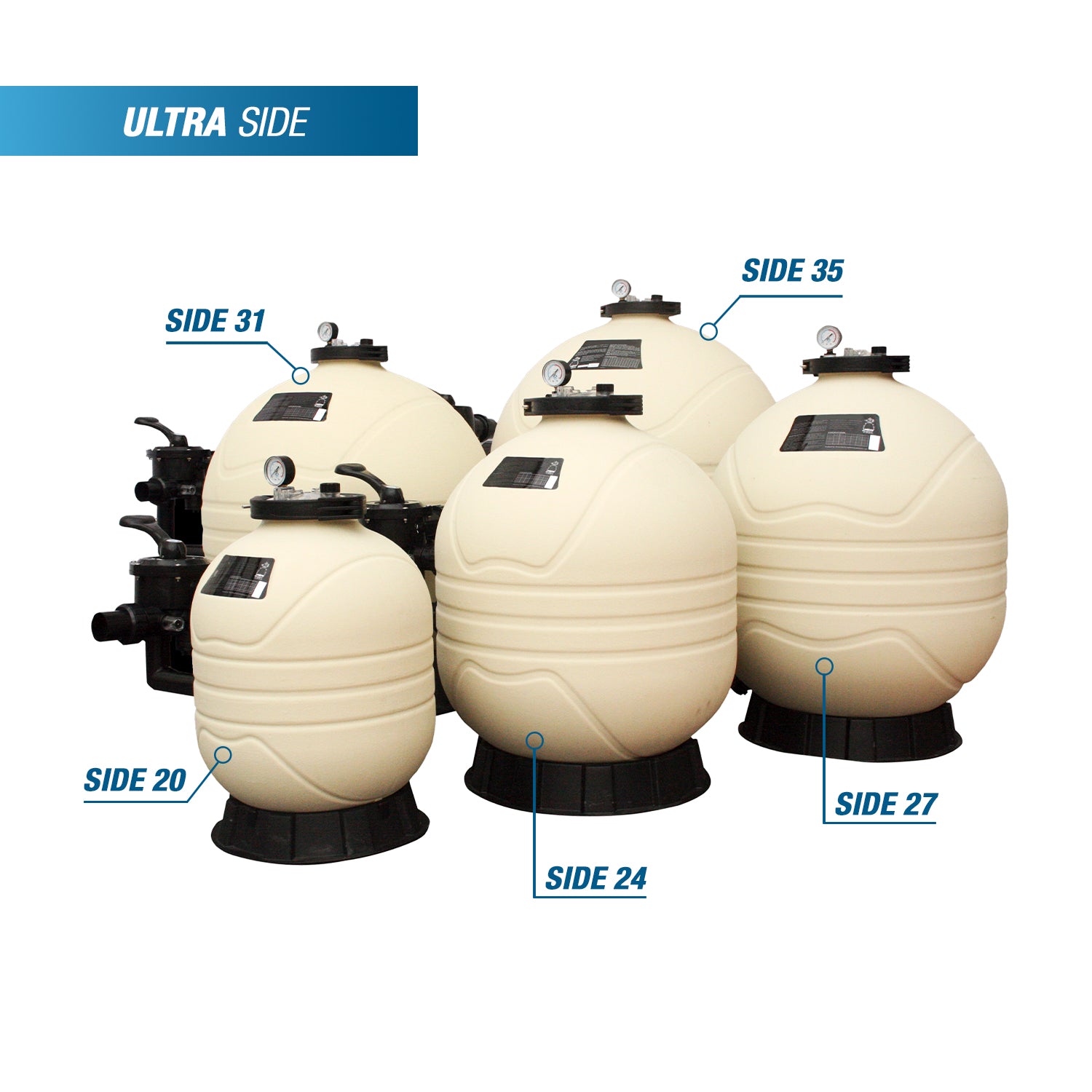

	SIDE 20	SIDE 24	SIDE 27	SIDE 31	SIDE 35
Reference	PF-ULT500S	PF-ULT600S	PF-ULT675S	PF-ULT775S	PF-ULT875S
Maximum Flow Rate (m³/h)	10	14	18	23.5	30.5
Filtration Surface (m²)	0.20	0.28	0.36	0.47	0.61
Addressable Volume (m³ in approximate 6h time)	60	80	100	140	180
Inlet / Outlet Connections	1.5" / 50mm		2.0" / 63mm
Diameter (mm)	500	600	675	775	875
Sand (kg) / Glass (kg)	70 / 55	125 / 100	185 / 150	320 / 255	430 / 345
Dimensions (AxBxC)	396 x 549 x 760	430 x 493 x 825	460 x 546 x 946	508 x 594 x 968	546 x 650 x 1086
Dimensions (DxExF)	225 x 500 x125	280 x 600 x 125	300 x 675 x 130	370 x 775 x 130	440 x 875 x 130
Warranty	Tank: 10 years / Valve: 3 years

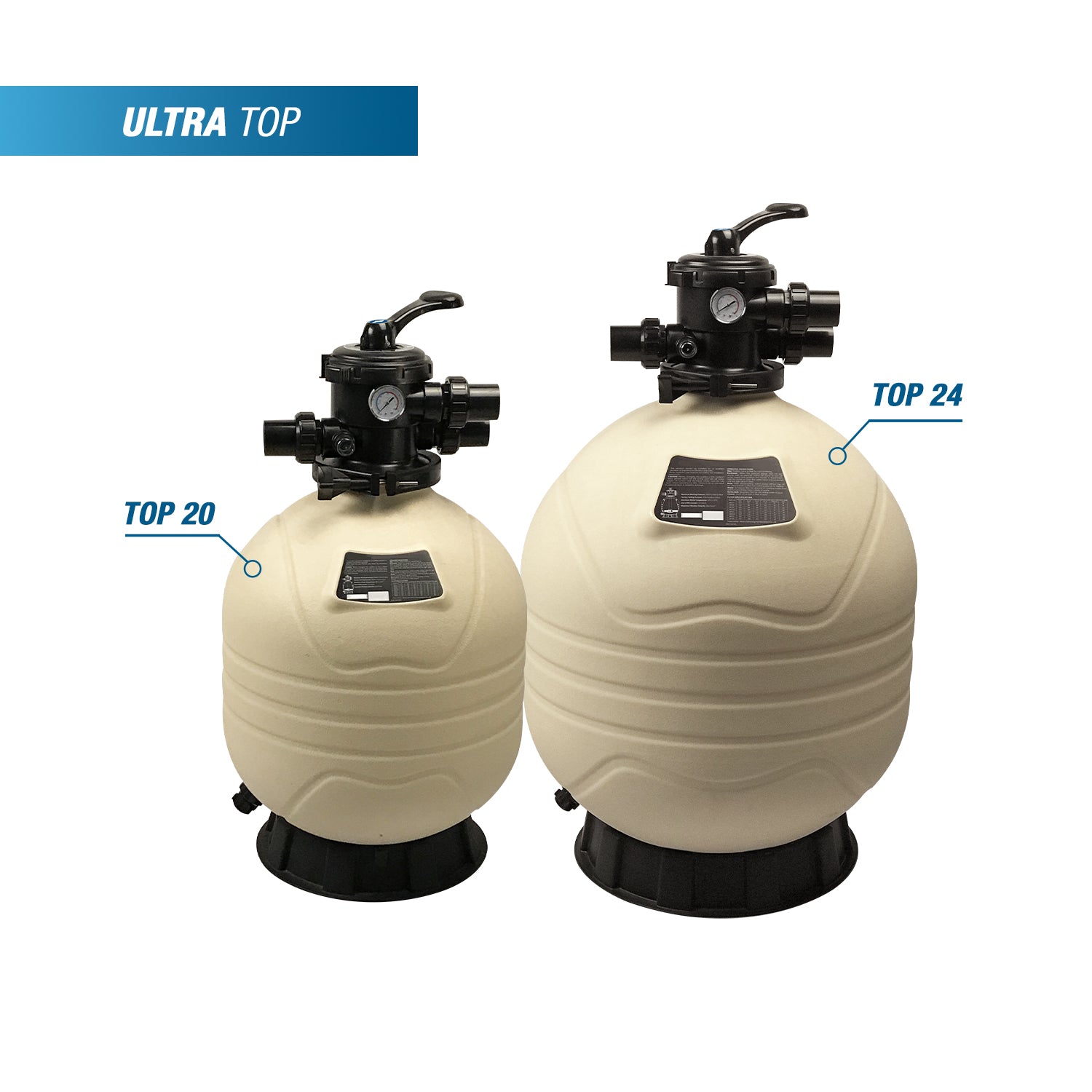

	TOP 20	TOP 24
Reference	PF-ULT500T	PF-ULT600T
Maximum Flow Rate (m³/h)	10	14
Filtration Surface (m²)	0.20	0.28
Addressable Volume (m³ in approximate 6h time)	60	80
Inlet / Outlet Connections	1.5" / 50mm
Diameter (mm)	500	600
Sand (kg) / Glass (kg)	70 / 55	125 / 100
Dimensions (AxBxC)	889 x 772 x 712	980 x 860 x 800
Warranty	Tank: 10 years / Valve: 3 years
