The specificity of Opti series filters lies in their ability to combine reliability, efficiency, ease of maintenance, and versatility, thus providing a complete solution for maintaining clean and healthy water in a variety of aquatic environments. They are a preferred option for those who demand quality water and exceptional longevity.
Reliability and durability: These filters stand out for their robust construction and ability to withstand high pressures, ensuring exceptional longevity even in demanding environments.

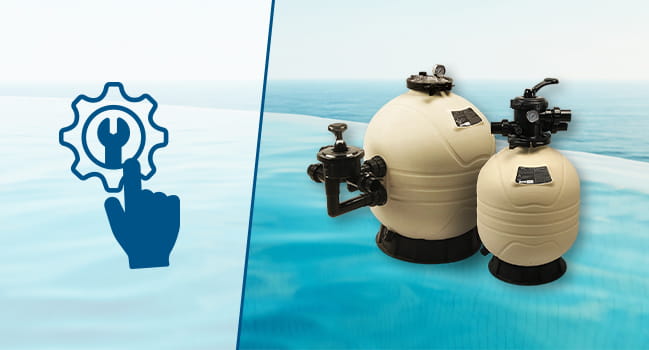

EASE OF MAINTENANCE
Ease of maintenance is one of the strengths of these filters. Their intelligent design allows for quick cleaning and replacement of filter elements, minimizing downtime. This feature ensures efficient and fast maintenance, guaranteeing continuous and optimal operation of your filtration system.
VERSATILITY
These filters offer extensive compatibility with various filtration pumps, making it easy to integrate them into a variety of existing filtration systems. This versatility ensures a solution tailored to a wide range of applications, providing flexibility appreciated by users.
TOP 450
TOP 500
TOP 650
Reference
PF-OPT450T
PF-OPT500T
PF-OPT650T
Maximum Flow Rate (m³/h)
7.80
10.80
15.30
Filtration Surface (m²)
0.16
0.22
0.31
Addressable Volume (m³ in approximate 6h time)
45
60
90
Inlet / Outlet Connections
1.5" / 50mm
Diameter (mm)
450
500
650
Sand (kg) / Glass (kg)
45 / 35
85 / 70
145 / 180
Dimensions (AxBxC)
814 x 698 x 638
845 x 730 x 670
950 x 835 x 775
Garantie
Cuve : 5 ans / Vanne : 2 ans
```html
SIDE 450
SIDE 500
SIDE 650
SIDE 700
Référence
PF-OPT450S
PF-OPT500S
PF-OPT650S
PF-OPT700S
Maximum Flow Rate (m³/h)
7.80
10.80
15.30
19.20
Filtration Area (m²)
0.16
0.22
0.31
0.39
Addressable Volume (m³ in approximate 6h time)
45
60
90
110
Inlet / Outlet Connections
1.5" / 50mm
Diameter (mm)
450
500
650
700
Sand (kg) / Glass (kg)
45 / 35
85 / 70
145 / 180
210 / 170
Dimensions (AxBxC)
360 x 420 x 730
390 x 450 x 770
430 x 490 x 850
450 x 510 x 960
Warranty
Tank: 5 years / Valve: 2 years
Flow rate from 7.8m³/h to 19.2m³/h | Ideal for pools from 45 to 115m³ | Max operating pressure: 2.0 bar (28 PSI) | Recyclable HDPE tank: High-density polyethylene
