Seko PoolDose Panel - pH-ORP

Pre-assembled panels for Residential Pools & Spas

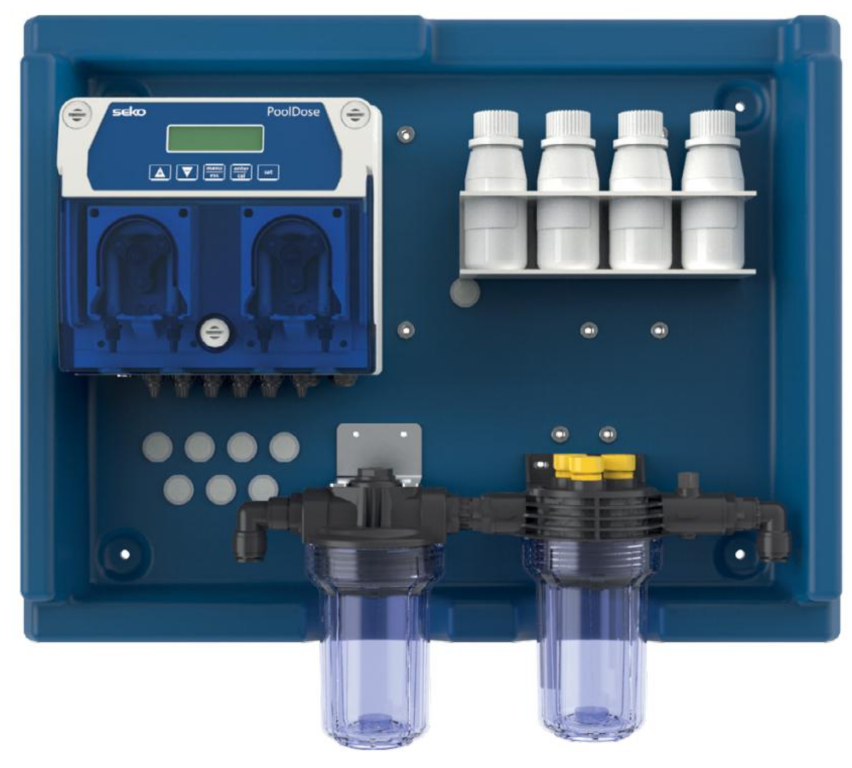

PoolDose panel is a user-friendly solution for the simple, hassle-free management of residential swimming pools up to 130m³. Combining quality products assembled within a minimal footprint, PoolDose Panel provides flexibility and fast installation courtesy of a carefully designed layout.

This fully integrated system requires no technical skill to use and makes setting parameters easier than ever before, while a multi language menu and remote alarm relay further simplify operation. This PoolDose panel model comes complete with a PPS8 probe, by-pass probe holder, washable cartridge filter and PoolDose pH-ORP peristaltic dosing unit.

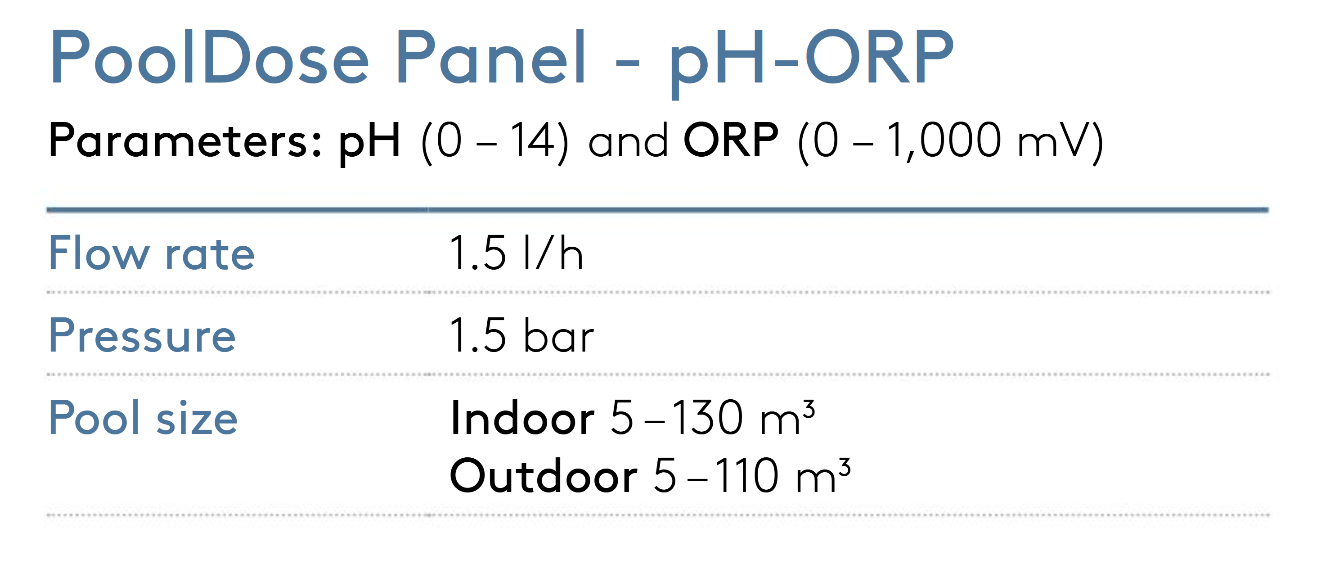

Parameters: pH (0-14) and ORP (0-1,000 mV)

Flow Rate and Pressure
Flow rate 1.5 l/h ; Pressure 1.5 bar

Pool Size

Indoor 5 - 130 m³

Outdoor 5 - 110 m³

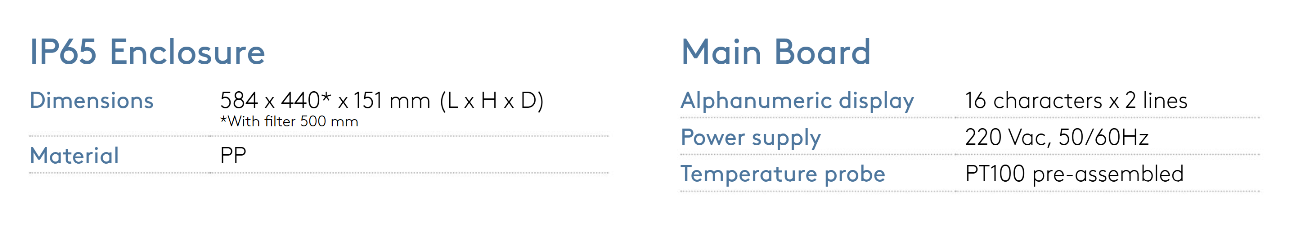

IP65 Enclosure
Dimensions 584 x 440* X 151mm (LxHxD) *with filter 500mm

Material PP

Main Board
Alphanumeric display 16 characters x 2 lines
Power supply 220 Vac, 50/60Hz

Temperature probe PT100 pre-assembled

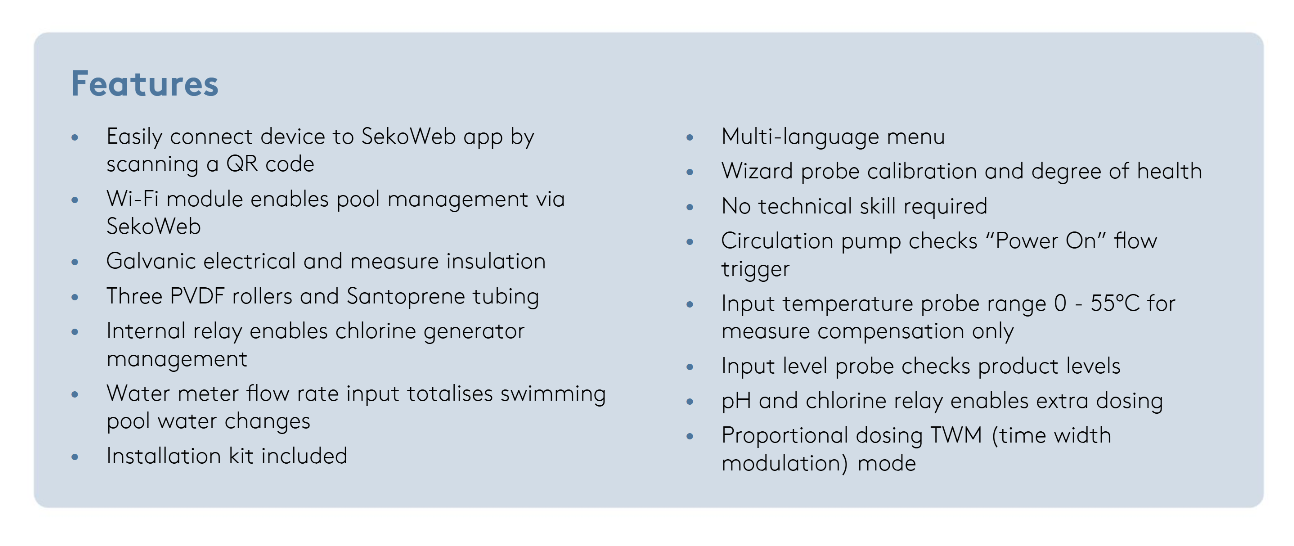

Features

• Easily connect device to SekoWeb app by scanning a QR code
• Wi-Fi module enables pool management via SekoWeb
• Galvanic electrical and measure insulation
• Three PVDF rollers and Santoprene tubing
• Internal relay enables chlorine generator management
• Water meter flow rate input totalises swimming pool water changes
• Installation kit included
• Multi-language menu
• Wizard probe calibration and degree of health
• No technical skill required
• Circulation pump checks "Power On" flow trigger

• Input temperature probe range 0 - 55°C for measure compensation only
• Input level probe checks product levels
• pH and chlorine relay enables extra dosing
• Proportional dosing TWM (time width modulation) mode
