Gaffey iFlocXact-PAC Flocculant Dosing
Gaffey iFlocXact-PAC Flocculant Dosing
Couldn't load pickup availability

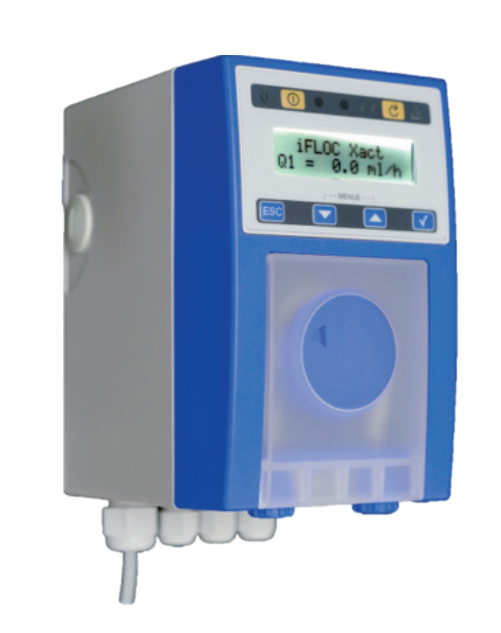

iFLOC®Xact – PAC flocculant dosing
For the dosing of very small quantities of PAC (Poly Aluminium Chloride) flocculant solution, the iFLOC®Xact professional peristaltic pump delivers
from every angle; truly continuous and precise dosing, efficient and economic use of chemicals, no overdosing and simple precise auto-calibration
according to the process flow rate selected on the LCD control panel.
With integrated tank level and leakage alarms, plus the option for a 2nd dosing rate set point (switchable by contact for example “night mode”),
iFLOC® offers a versatile and reliable dosing option using the latest gear-free stepper motor technology.
Technical data
iFLOC®Xact pump: -
• Weight/dimensions: 1.5kg, W94 x H170 x D130mm
• Voltage: 100-240VAC, 1Ø, 50-60Hz
• Input power: 24 Watts
• On/off control Volt free switching contact or input power on/power off.
• Protection: IP65
• Output range: 1.0 –1200 ml/h
• Max. back pressure: 2.0 bar
• Max. cycle duty: 100%
• Ambient temp range: 5-45˚C
• Warranty: 2 years, except for wearable parts or incorrect use
