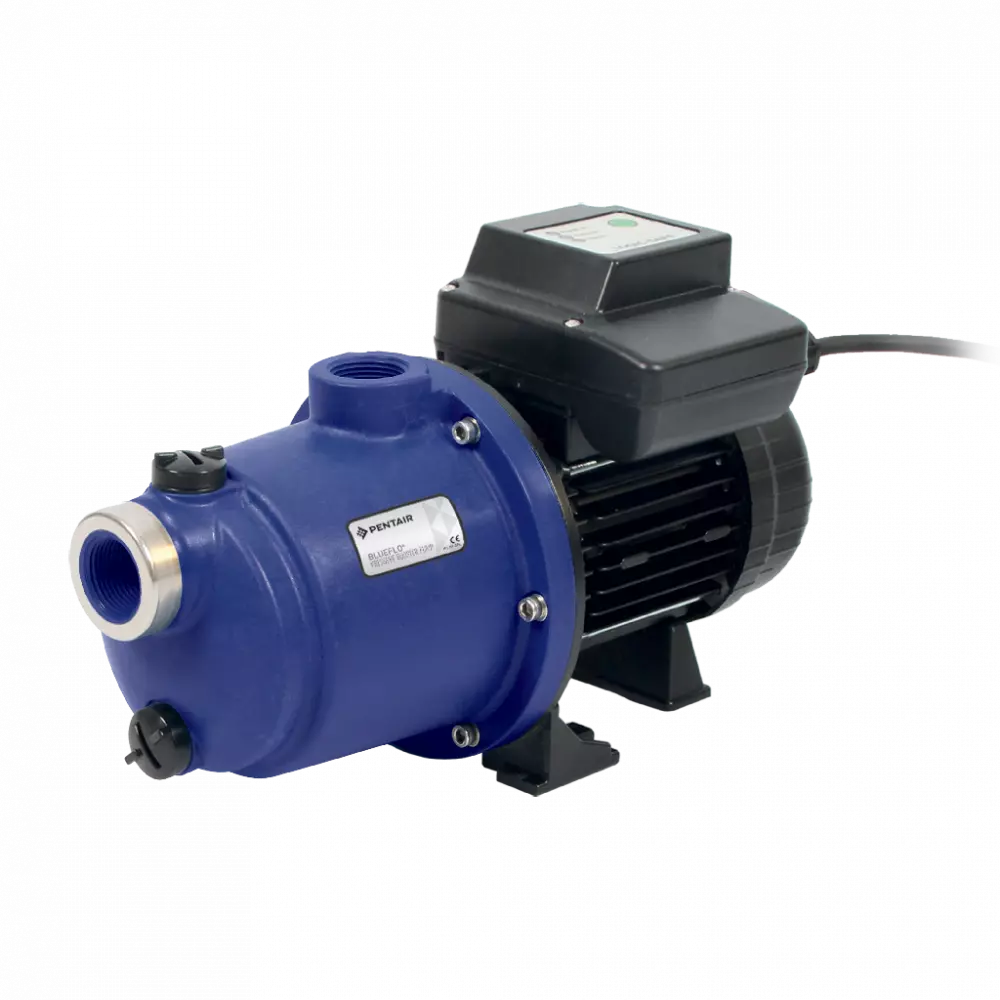

The all new Pentair Booster pumps, pressure boosting just go a whole lot more efficient, more cost effective and safer. The innovative new design of the hydraulics, combined with the Logic-Safe features, makes this booster pump the ultimate pump choice.
BOOSTER PUMP FOR PRESSURE-SIDE CLEANING CUTS ENERGY COSTS
Its advanced 5-stage impeller design delivers greater water pressure for more powerful cleaning. Boost-Rite Booster Pump has 1" fittings which allow for better flow and efficiency. The Totally Enclosed Fan Cooled (TEFC) motor design allow the pump to run cooler and quieter.
- Ideal replacement for pressure-side booster pumps
- 5-stage impeller design reduces electricity use
- Provides 50 psi@ 13.2 US GPM
- Includes Hose Adapter Kit (353040)
- Condensed size is 1/3 smaller than competing pumps, taking up less space on equipment pad
- Larger wiring compartment for easy access and installation
- UL and cUL listed; 60 Hz; 1-Phase
TECHNICAL FEATURES
- AISI316 stainless steel motor shaft and metal free impellers for superior corrosion resistance
- Motor Totally Enclosed Fan Cooled (TEFC) motor design allows the pump to run cooler and quieter
- Larger sealed bearings for high temperature handling
- 4 (-101) and 5-stage (-151) impeller design → delivers greater water pressure for more powerful cleaning
- Inlet/Outlet → 1’ BSP tapped
- Ø Unions → 32 mm
- Salt resistance → 0.40% (4 g/l)
-
Pump body in fiberglass reinforced polypropylene
High pressure resistance -
Integrated ON/OFF switch and power cord supplied
Safe and easy installation -
High temperature bearings
For longer service life -

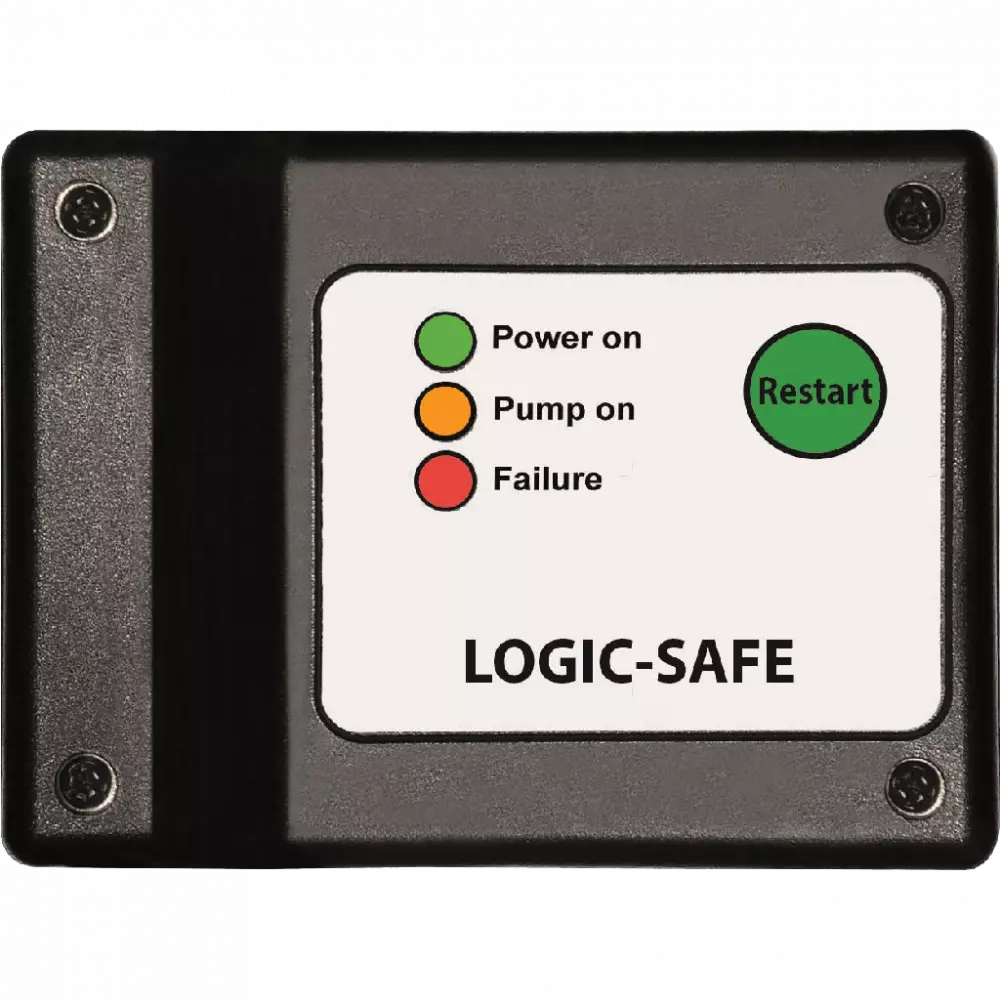

Integrated Electronic Protection Logic
Avoid dry running, motor overload and water temperature overheating -
Compatible inlet/outlet positions
Ideal remplacement of Sta-Rite Boostrite, Polaris*, DAB** EuroCom booster pumps
