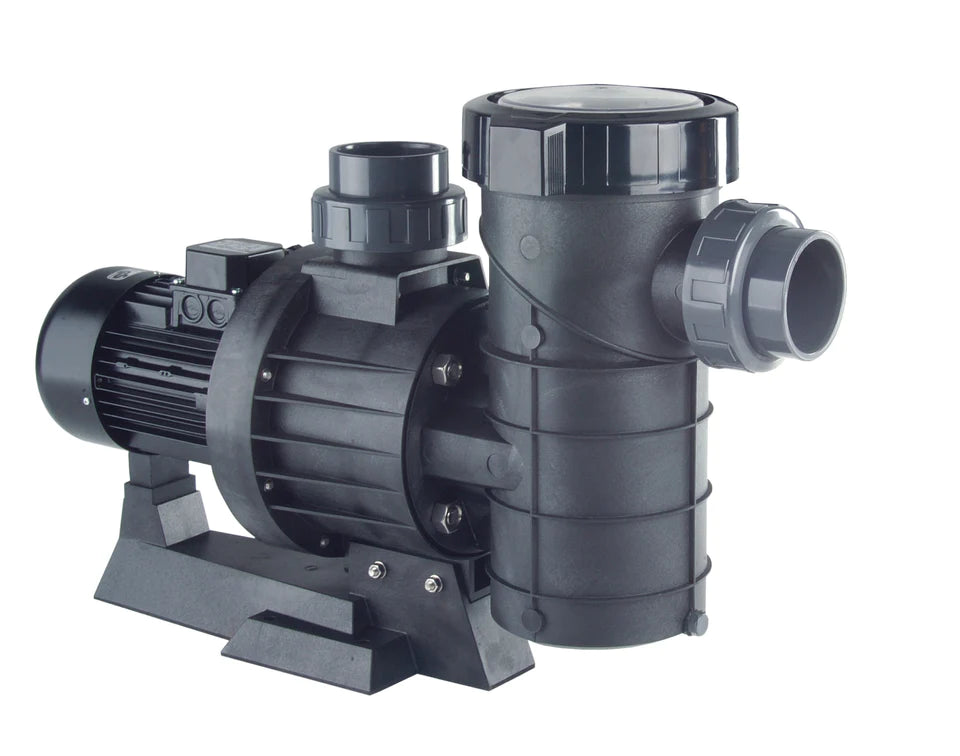

The MAXIM high-performance commercial centrifugal pump has been developed for use in public swimming pools.
Materials:
- Diffuser body made of polypropylene and impeller made of Luranyl ®. =>They provide high mechanical resistance to high temperatures. The motor shaft and all metal parts in contact with the water are made of AISI-316 stainless steel. The mechanical seal also incorporates AISI-316 stainless steel and aluminium oxide in the fixed parts, a high purity material that provides resistance to pressure and temperature.
- It includes a removable pre-filter with a capacity of 8 litres, with a special key that allows easy access to the pre-filter basket.
- Transparent pre-filter cover.
- It is made entirely of high-strength technical plastics that guarantee a longer service life. The quality of this pump has enabled it to obtain the GS mark awarded by TÜV Product Service. Conforms to Energy Efficiency Standard class IE2
Motor:
The motors have a working voltage of 230V/400V, and withstand variations of +/- 10%. Eurovoltage motor with IP-55 protection and class F insulation. Double insulation of the motor shaft against water projections.
2RS bearings:
These seals are protected by two sealing plates made of rubber moulded to the platen, which protect the bearing from the entry of solid particles. This type of bearings allow to work in environments with humidity and high temperatures.
Accessories:
3" threaded connections. Incorporates 3" connection fittings for suction and delivery on the pump assembly.
